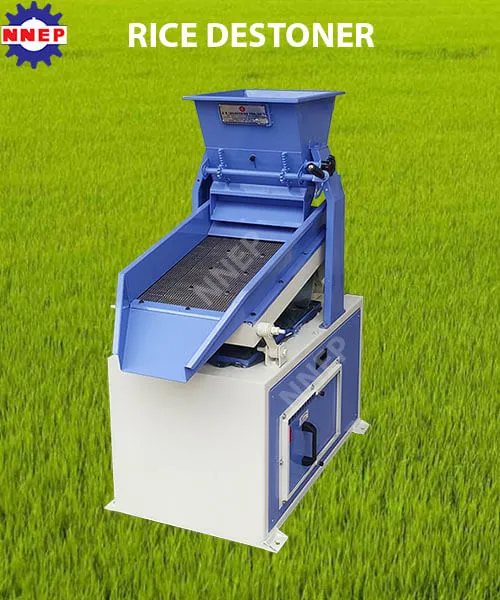

Our Destoner Machine has been designed to remove stones from rice. We can adjust the air inlet door or angle of the inclined deck for better results. Our destoners are working successfully in thousands of rice mills and rice mundy. The capacities are as follows:- 250 kg per hour 500 Kg per hour, 1000 kg per hour 2,000 kg per hour, 3000 Kg per hour and 4000 Kg per hour.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN250D | 200 – 250 | 1040x605x1235 | 110 | 1.5/1.11 (1440 RPM) | 415/50 |
| NN500D | 300 – 500 | 1390x697x1546 | 184 | 2/1.5 (1440 RPM) | 415/50 |
| NN1000D | 700 – 1000 | 1407x847x1687 | 234 | 3/2.25 (1440 RPM) | 415/50 |
| NN2000D | 1500 – 2000 | 1553x987x1689 | 263 | 5/3.7 (1440 RPM) | 415/50 |
| NN3000D | 2250 – 3000 | 1578x1072x1689 | 286 | 5/3.7 (1440 RPM) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

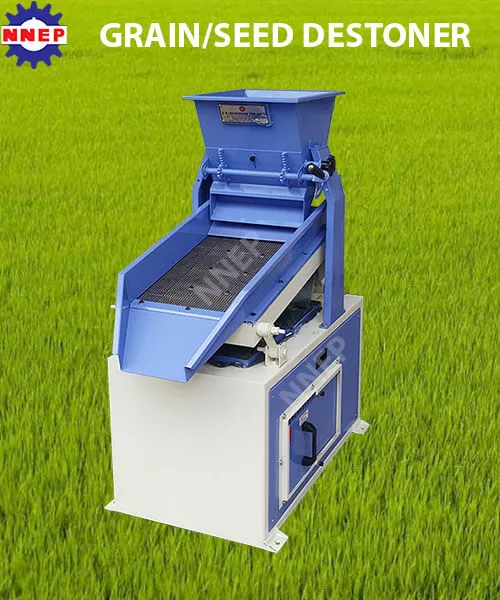

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Our Destoner Machine has been designed to remove stones from all kinds of grains and seeds like rice, pulses (dhal), pepper, paddy, sorghum (Jowar), soybean, sesame, mustard, millet etc., in the same machine. All kinds of grains and seeds can be cleaned in this same machine by regulating air inflow adjustment in the destoner according to the grain weight. The grain flow inclined deck also can be adjusted for better results. More than 20,000 Destoners are successfully working in many grain and seed processing units, grain dealers, rice mills, etc. The capacity are as follows:- 250 kg per hour 500 Kg per hour, 1000 kg per hour 2,000 kg per hour and 3000 Kg per hour.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN250D | 200 – 250 | 1040x605x1235 | 110 | 1.5/1.11 (1440 RPM) | 415/50 |
| NN500D | 300 – 500 | 1390x697x1546 | 184 | 2/1.5 (1440 RPM) | 415/50 |
| NN1000D | 700 – 1000 | 1407x847x1687 | 234 | 3/2.25 (1440 RPM) | 415/50 |
| NN2000D | 1500 – 2000 | 1553x987x1689 | 263 | 5/3.7 (1440 RPM) | 415/50 |
| NN3000D | 2250 – 3000 | 1578x1072x1689 | 286 | 5/3.7 (1440 RPM) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

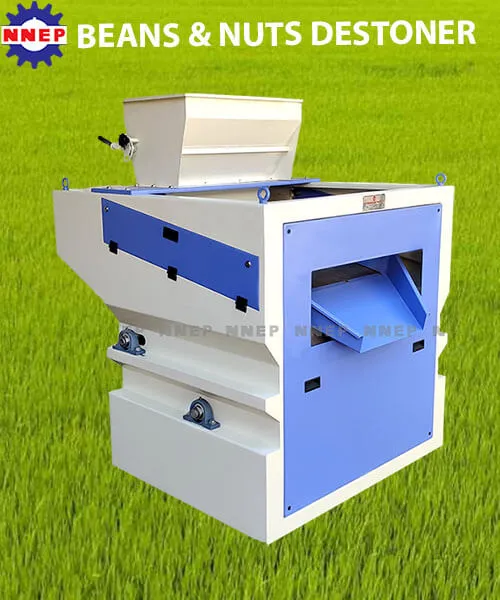

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Our Beans and Nuts Destoner has been designed to remove stones from all kinds of beans and nuts like neem seeds, raw cashew nut, groundnut, badam, areca nut and coffee beans etc. This type of destoner is mainly used to separate stones from beans and nuts whose size is bigger than the regular grains. All kinds of beans and nuts can be cleaned in this same single machine by regulating air inflow adjustment in the destoner according to the beans or nuts weight. The inclined deck also can be adjusted for better results.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN3000PD | 1000-2000 | 1555x1765x1708 | 305 | 5/3.7 (1440) | 415/50 |
| NN4000PD | 2000-3000 | 1555x1890x1708 | 395 | 5/3.7 (1440) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

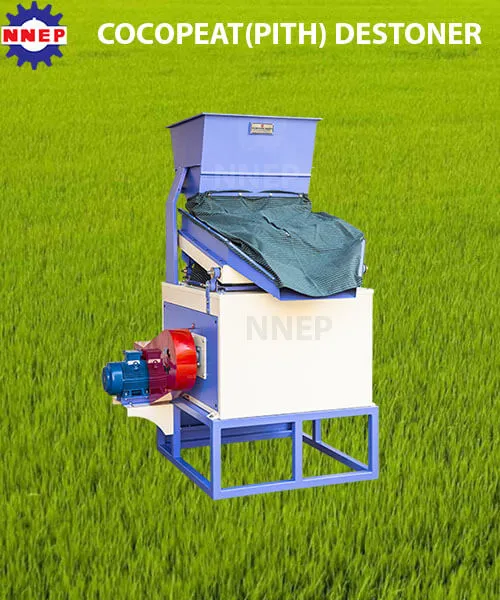

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Our coco peat Destoner is designed to remove stones and sand from coco peat. As this machine removes sand and stones from coco peat,the quality of the coco peat is very high. This machine is used in the processing line prior to the coco peat block making machine. We have sold this machine across India and exported it to pan asian Countries as well and it is working successfully in our customer's sites.
| Machine Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/Frequency(Hz) |
|---|---|---|---|---|---|
| NN3000DCo | 1000-1500 | 1590x1575x2255 | 384 | 3/2.25 | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

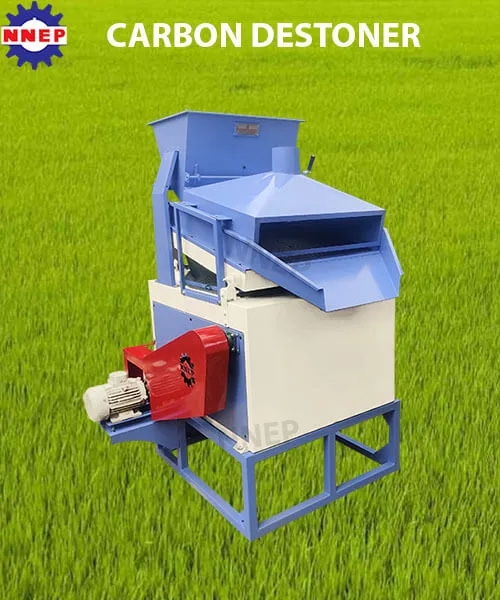

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Our Carbon Destoner consists of a destoner with a top hood. It has been designed to remove carbon granules and stones from carbon powder. We have provided an air suction duct to collect the fine dust that is hovering over the machine. We have different models as specified in the table below:-
| Machine - Model | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|
| NN250DCa | 1048x987x1590 | 152 | 1.5/1.11 (1440 RPM) | 415/50 |
| NN500DCa | 1382x1089x1985 | 275 | 2/1.5 (1440 RPM) | 415/50 |
| NN1000DCa | 1499x1240x2145 | 320 | 3/2.25 (1440 RPM) | 415/50 |
| NN2000DCa | 1553x1365x2145 | 370 | 5/3.7 (1440 RPM) | 415/50 |
| NN3000DCa | 1553x1490x2145 | 395 | 5/3.7 (1440 RPM) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.
