NN ENGINEERING PRODUCTS

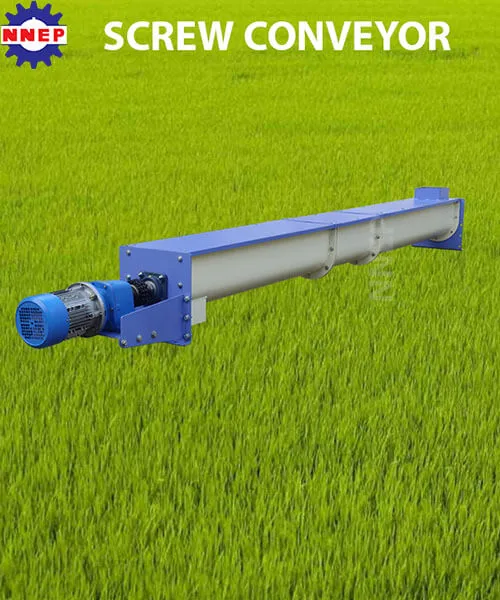

Screw conveyors, or auger conveyors, are industrial equipment used in transporting bulk quantities of granular solids (e.g., powder, grains, granules), semi-solids, and even non-flowing materials from one point to another. Screw conveyors primarily consist of a rotating screw shaft that is installed within a trough. As the screw shaft rotates, the material moves linearly. They can be designed to provide horizontal travel paths.

Machine - Model	Through size & thick	Screw dia and thick	Power Required in (HP/KW)	Voltage(V)/ Frequency(Hz)
NN200USC	225 mm x 3mm	200mm x 4mm thick	1/0.75 geared motor	415v /50Hz
NN300USC	325 mm x 3mm Thick	300mm x 4mm thick	1.5/1.1 geared motor	415v /50Hz

All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.

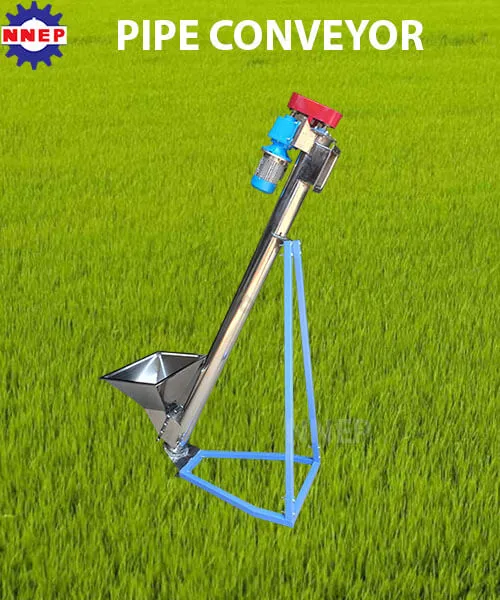

Pipe conveyors or auger conveyors, are industrial equipment used in transporting bulk quantities of granular solids (e.g., powder, grains, granules), semi-solids, and even non-flowing materials from one point to another. Pipe conveyors primarily consist of a rotating screw shaft that is installed within a Pipe. As the screw shaft rotates, the material moves linearly. They can be designed to provide horizontal, vertical, and inclined travel paths.

Machine - Model	Through size & thick	Screw dia and thick	Power Required in (HP/KW)	Voltage(V)/ Frequency(Hz)
NN150PSC	163 mm x 3.5mm Thick	150mm x 4mm thick	1/.75 geared motor	230v , 50 Hz

All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.

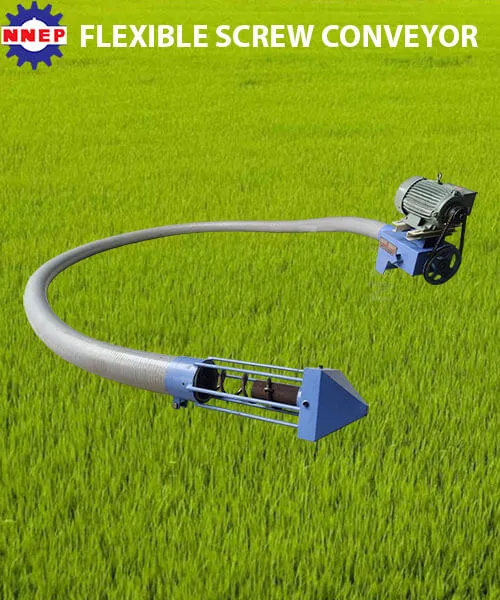

flexible screw conveyors, also known as auger conveyors, have emerged as an indispensable solution for efficiently moving bulk materials in a precise and adaptable manner. These innovative conveyor systems are characterized by a spiral-shaped auger enclosed within a flexible, tubular casing. Flexible screw conveyors are prized for their ability to convey various materials, both horizontally and vertically, with unmatched precision and flexibility. The intake end of a flexible screw conveyor tube is equipped with an input U-shaped trough that connects to the outlet of a hopper or directly to the outlet of process equipment such as a bulk bag discharger, grinder, blender, or storage vessel.

Machine - Model	Pipe Dia	Spring	Length up to	Power Required in (HP/KW)	Voltage (v) / Frequency ( Hz)
NN3FSC	3 inch	8mm, Spring Steel	25 feet	1/.75	230v , 50 Hz
NN4FSC	4 inch	10mm, Spring Steel	25 feet	2/1.5	230v , 50 Hz

All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.
