The Aspirator machine is used to remove dust particles from the food grains. The
grains are fed into the aspirator hopper and while it falls down through the air
chamber the impurities are removed by a sucking device which is provided at the back
side of the chamber. We have different capacities like 250 Kg per hour 500 Kg per
hour, 1000 kg per hour 2,000 kg per hour and 3,000 Kg per hour.
Machine - Model
Capacity in Kgs/hr
Dimensions in mm (LxWxH)
Weight in Kgs
Power Required in (HP/Kw)
Voltage(V)/ Frequency(Hz)
NN250A
200 – 250
986x675x1044
40
0.5/.37 (1440 RPM)
415/50
NN500A
300 – 500
1270x695x1276
65
0.5/.37 (1440 RPM)
415/50
NN1000A
700 – 1000
1480x834x1393
91
1/.75 (1440 RPM)
415/50
NN2000A
1500 – 2000
1550x948x1393
101
1/.75 (1440 RPM)
415/50
NN3000A
2250 – 3000
1550x1044x1393
108
1/.75 (1440 RPM)
415/50
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.

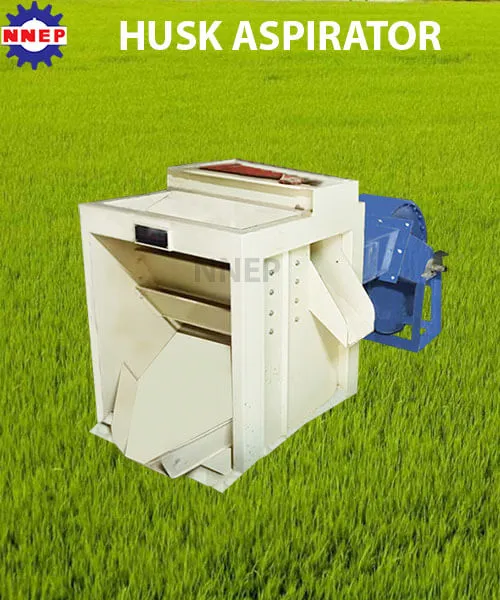

Husk Aspirator
The Husk aspirator machine is used to remove chaff ,straw bits and dust from the
thrashed paddy or any other food grains.
Machine Model
Capacity in Kgs/hr
Dimensions in mm (LxWxH)
Weight in Kgs
Power Required in (HP/Kw)
Voltage(V)/Frequency(Hz)
NN3000HA
1500-2000
2425x985x1065
315
3/2.25
415/50
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.

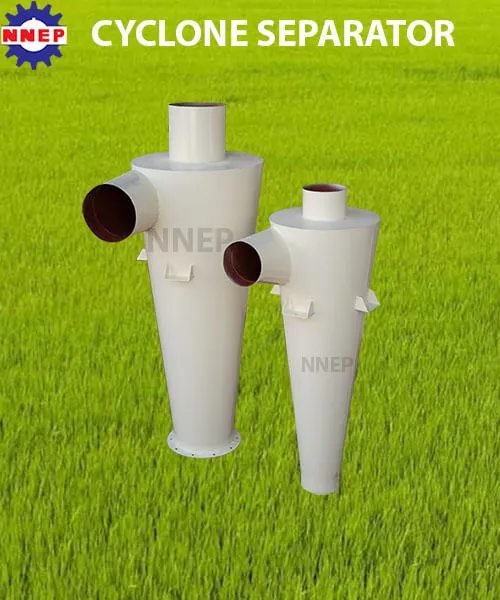

Cyclone Separator
A cyclone separator operates based on the principle of centrifugal force. When a
mixture containing solid particles mixed with air enters the cyclone through an
inlet, it is directed into a rapidly spinning vortex. As the mixture rotates,
centrifugal force pushes the heavier particles toward the outer wall of the cyclone,
causing them to spiral downward and eventually collect at the bottom of the
separator. Meanwhile, the cleaner air is drawn out from the center and exits through
an outlet at the top.
Machine - Model
Diameter
Dimensions in mm (LxWxH)
Weight in Kgs
Inlet pipe dia
NN400Cy
400
550x400x1150
14
150
NN500Cy
500
720x500x1630
25
200
NN1500Cy
1500
2100x1500x4770
450
550
All the machineries can be made in stainless steel also.
All the machineries have different capacities.
We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.
